The floorplan drawings below are generic representations of general layout only and are not to scale or correctly proportioned. Dimensions given in the tables have been rounded to two decimal places and prices are subject to change without notice, especially on imported caravans. Therefore, Caravanning Answers accepts no responsibility for incorrect information. For latest prices, specifications and detailed floorplans, click through to the manufacturer’s website.

 COACHMAN

Coachman Caravan Company Limited, Amsterdam Road, Sutton Fields Industrial Estate, Hull HU7 0XF.   Phone: 01482 839737    Website: www.coachman.co.uk

Amara-2011

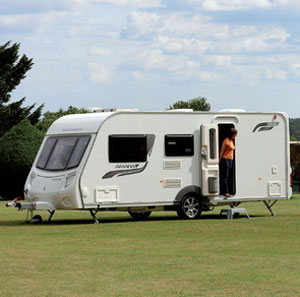

Coachman Amara. Coachman’s entry level range continues to be popular and is wider than most entry level caravans. In fact, the Amara’s specification stands up well against mid-range caravans from some manufacturers and it is priced accordingly.

Choose between nine superbly built Amara models including (unusually for an entry level range) twin axle designs. There are layouts for couples through to families of six and a choice of end or side washroom. Two models offer a fixed double bed.

Standard features include Grade 3 thermal insulation, sprung beds and backrests, curved locker doors, external barbecue point, Pioneer entertainment system, gas oven and four-burner hob, and microwave oven.

MODEL

PRICE
O.T.R.

LAYOUT

BERTHS

INT.
LENGTH

HEAD
ROOM

OVERALL
LENGTH

EXT.
WIDTH

EXT.
HEIGHT

AWNING

FRIDGE

MTPLM

MIRO

 Amara 380/2

£14,740

E3

2

4.02m

1.96m

5.68m

2.26m

2.67m

8.40m

107 ltrs

1235kg

1107kg

 Amara 450/2

£15,690

A4

2

4.73m

1.96m

6.39m

2.26m

2.67m

9.13m

107 ltrs

1380kg

1245kg

 Amara 520/4

£16,740

B4

4

5.48m

1.96m

7.14m

2.26m

2.67m

9.92m

107 ltrs

1555kg

1393kg

 Amara 535/4

£17,220

C3

4

5.55m

1.96m

7.21m

2.26m

2.67m

9.98m

107 ltrs

1490kg

1327kg

 Amara 550/5

£17,370

H3

5

5.67m

1.96m

7.33m

2.26m

2.67m

10.10m

107 ltrs

1630kg

1456kg

 Amara 560/4

£17,440

O3

4

5.85m

1.96m

7.51m

2.26m

2.67m

10.24m

107 ltrs

1600kg

1434kg

 Amara 570/6

£17,490

K

6

5.85m

1.96m

7.51m

2.26m

2.67m

10.24m

107 ltrs

1635kg

1449kg

 Amara 640/6 (twin axle)

£18,490

?

6

6.22m

1.96m

7.88m

2.26m

2.66m

10.65m

107 ltrs

1760kg

1570kg

 Amara 655/6 (twin axle)

£18,590

?

6

6.22m

1.96m

7.88m

2.26m

2.66m

10.65m

107 ltrs

1775kg

1585kg

Layout-E3

Layout E3

Layout-A4

Layout A4

Layout-C3

Layout C3

Layout-H3

Layout H3

Layout-K

Layout K

Layout-B1

Layout B1

Layout-B4

Layout B4

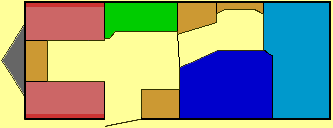

Layout-O3

Layout O3

 Seats/Beds

 Kitchen

 Table/Cupboard/Wardrobe

 Washroom

 Bunk

 Fixed Bed

Key

Pastiche-2011

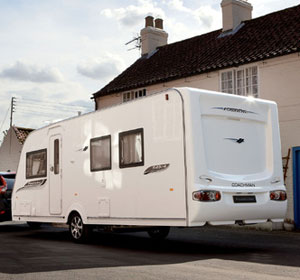

Coachman Pastiche. Popular with both couples and families, the Pastiche is a single axle caravan available in five models including an island double bed design.

‘Oak’ finish Italian-style curved locker doors, luxurious sprung beds and backrests and optional leather upholstery on fixed bed models mean the Pastiche’s interior is top notch.

Standard features include an external barbecue point, heavy-duty corner steadies, a full-length door flyscreen and a keyfob controlled awning light. The kitchen has an oven, 4-burner hob, grill, microwave oven and 107 litre fridge. There’s a Pioneer remote control entertainment centre, remote control alarm, gas and electric warm air central heating and lots more besides.

MODEL

PRICE
O.T.R.

LAYOUT

BERTHS

INT.
LENGTH

HEAD
ROOM

OVERALL
LENGTH

EXT.
WIDTH

EXT.
HEIGHT

AWNING

FRIDGE

MTPLM

MIRO

 Pastiche 460/2

£17,180

A3

2

4.86m

1.96m

6.63m

2.26m

2.67m

9.35m

107 ltrs

1420kg

1288kg

 Pastiche 470/2

£17,180

J1

2

5.00m

1.96m

6.78m

2.26m

2.67m

9.45m

107 ltrs

1435kg

1302kg

 Pastiche 520/4

£18,390

B4

4

5.51m

1.96m

7.29m

2.26m

2.67m

9.95m

107 ltrs

1585kg

1427kg

 Pastiche 545/4

£18,640

G3

4

5.80m

1.96m

7.58m

2.26m

2.67m

10.30m

107 ltrs

1620kg

1459kg

 Pastiche 560/4

£18,640

O3

4

5.80m

1.96m

7.58m

2.26m

2.67m

10.30m

107 ltrs

1635kg

1474kg

Layout-A3

Layout A3

Layout-G3

Layout G3

Layout-J1

Layout J1

Layout-B4

Layout B4

Layout-O3

Layout O3

 Seats/Beds

 Kitchen

 Table/Cupboard/Wardrobe

 Washroom

 Bunk

 Fixed Bed

Key

VIP-2011

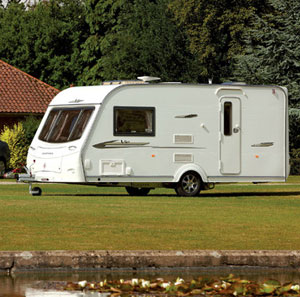

Coachman VIP. VIP models are crafted to meet the needs of the most discerning caravanner.

There are two-berth and four-berth options, a choice of side or end washroom and models with side or island fixed double bed.

When it comes to equipment, the VIP has it all. Outside there’s a gas barbecue point, the Al-Ko Secure wheel clamping system, heavy-duty corner steadies and a full-length door flyscreen. Inside there’s ‘Walnut’ style Italian-inspired furniture, sprung beds and backrests, Pioneer remote-control entertainment centre, luxury floor covering and loose-lay carpets and a lavishly-equipped kitchen.

A Phantom tracker system is included as standard.

MODEL

PRICE
O.T.R.

LAYOUT

BERTHS

INT.
LENGTH

HEAD
ROOM

OVERALL
LENGTH

EXT.
WIDTH

EXT.
HEIGHT

AWNING

FRIDGE

MTPLM

MIRO

 VIP 460/2

£18,620

A3

2

4.86m

1.96m

6.63m

2.26m

2.67m

9.35m

107 ltrs

1430kg

1303kg

 VIP 520/4

£19,860

B4

4

5.51m

1.96m

7.29m

2.26m

2.67m

9.95m

107 ltrs

1590kg

1437kg

 VIP 545/4

£20,120

G3

4

5.80m

1.96m

7.58m

2.26m

2.67m

10.30m

107 ltrs

1630kg

1474kg

 VIP 560/4

£20,120

O3

4

5.80m

1.96m

7.58m

2.26m

2.67m

10.30m

107 ltrs

1645kg

1489kg

Layout-A3

Layout A3

Layout-B4

Layout B4

Layout-G3

Layout G3

Layout-O3

 Seats/Beds

 Washroom

 Kitchen

 Bunk

 Table/Cupboard/Wardrobe

 Fixed Bed

Key

Layout O3

Laser

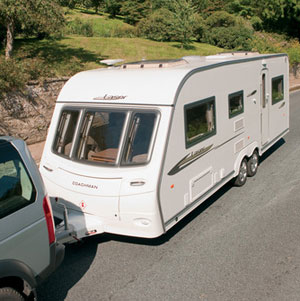

Coachman Laser. This twin-axle range is for those who are not prepared to compromise on quality, equipment or style. Perfect for two, but with plenty of room for guests, Laser models offer you all the luxury you can imagine.

There are three models to choose from: the Laser 640/4 and 650/4 sleep four in comfort and feature a fixed double bed layout; the Laser 655/6 sleeps up to six.

Furniture is ‘walnut’ finish and beds and backrests are sprung.

Equipment includes onboard water tank, Phantom tracker system and Pioneer remote control entertainment centre.

MODEL

PRICE
O.T.R.

LAYOUT

BERTHS

INT.
LENGTH

HEAD
ROOM

OVERALL
LENGTH

EXT.
WIDTH

EXT.
HEIGHT

AWNING

FRIDGE

MTPLM

MIRO

 Laser 640/4 (twin axle)

£22,490

?

4

6.19m

1.96m

7.97m

2.26m

2.66m

10.58m

107 ltrs

1810kg

1650kg

 Laser 650/4 (twin axle)

£22,490

G3

4

6.19m

1.96m

7.97m

2.26m

2.66m

10.58m

107 ltrs

1800kg

1640kg

 Laser 655/6 (twin axle)

£22,890

?

6

6.19m

1.96m

7.97m

2.26m

2.66m

10.58m

107 ltrs

1870kg

1690kg

Layout-G3

Layout G3

Layout-B2

Layout G3

 Seats/Beds

 Kitchen

 Table/Cupboard/Wardrobe

 Washroom

 Bunk

 Fixed Bed

Key
