The floorplan drawings below are generic representations of general layout only and are not to scale or correctly proportioned. Dimensions given in the tables have been rounded to two decimal places and prices are subject to change without notice, especially on imported caravans. Therefore, Caravanning Answers accepts no responsibility for incorrect information. For latest prices, specifications and detailed floorplans, click through to the manufacturer’s website.

 BAILEY

Bailey of Bristol, South Liberty Lane, Bristol BS3 2SS.
Phone: 0117 3052939   Website: www.bailey-caravans.co.uk

olympus

Bailey Olympus. Featuring Bailey’s new Alu-Tech state-of-the-art construction system, Olympus is a feature packed caravan with a market-leading  ten-year body shell integrity guarantee. It is built to Grade lll thermal insulation standards for year-round use.

There are seven models in the Olympus range sleeping between two and six people. There’s a choice of side or end washrooms and two models feature a fixed double bed.

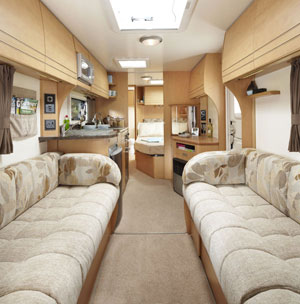

Inside, the Olympus is light and  spacious, with 6ft 5in of headroom and Pearwood finish furniture with flush-fit doors. The fridge has a full-width freezer compartment, there’s a four-burner gas hob, large-capacity sink and even a built-in microwave oven.

MODEL

PRICE
O.T.R.

LAYOUT

BERTHS

INT.
LENGTH

HEAD
ROOM

OVERALL
LENGTH

EXT.
WIDTH

EXT.
HEIGHT

AWNING

FRIDGE

MTPLM

MIRO

 Olympus 462

£13,890

A

2

4.58m

1.96m

6.15m

2.19m

2.63m

9.36m

107 ltrs

1263kg

1121kg

 Olympus 464

£14,390

F

4

4.78m

1.96m

6.35m

2.19m

2.63m

9.56m

107 ltrs

1320kg

1168kg

 Olympus 504

£14,990

Z2

4

5.68m

1.96m

7.25m

2.19m

2.63m

10.46m

107 ltrs

1440kg

1267kg

 Olympus 525

£15,090

B2

5

5.53m

1.96m

7.10m

2.19m

2.63m

10.31m

107 ltrs

1463kg

1281kg

 Olympus 534

£14,990

O2

4

5.68m

1.96m

7.25m

2.19m

2.63m

10.46m

107 ltrs

1458kg

1285kg

 Olympus 546

£15,190

K

6

5.53m

1.96m

7.10m

2.19m

2.63m

10.31m

107 ltrs

1457kg

1265kg

 Olympus 624 (Twin Axle)

£16,090

O2

4

6.29m

1.96m

7.87m

2.19m

2.63m

11.13m

107 ltrs

1618kg

1438kg

Layout-A

Layout A

Layout-F

Layout F

Layout-B2

Layout B2

Layout-O2

Layout O2

Layout-K

Layout K

Z2

Layout Z2

 Seats/Beds

 Kitchen

 Table/Cupboard/Wardrobe

 Washroom

 Bunk

 Fixed Bed

Key

pegasus534

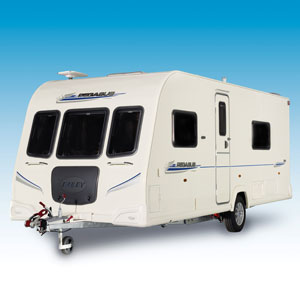

Bailey Pegasus. Featuring Bailey’s new Alu-Tech state-of-the-art construction system, Pegasus is wider than the Olympus and with a larger fridge. As with the Olympus, it has a market-leading  ten-year body shell integrity guarantee and is built to Grade lll thermal insulation standards for year-round use.

The eight models in the Pegasus range provide options for both couples and families. There’s a choice of side or end washrooms and even an innovative island double bed layout.

The light, spacious Pegasus features a high level of specification including innovative contemporary styling, microwave oven and the latest security and safety equipment. Yet all this comes at an affordable price.

MODEL

PRICE
O.T.R.

LAYOUT

BERTHS

INT.
LENGTH

HEAD
ROOM

OVERALL
LENGTH

EXT.
WIDTH

EXT.
HEIGHT

AWNING

FRIDGE

MTPLM

MIRO

 Pegasus 462

£16,045

A

2

4.90m

1.96m

6.48m

2.28m

2.63m

9.68m

115 ltrs

1326kg

1180kg

 Pegasus 514

£16,880

B3

4

5.61m

1.96m

7.18m

2.28m

2.63m

10.39m

115 ltrs

1466kg

1293kg

 Pegasus 524

£16,880

C

4

5.61m

1.96m

7.18m

2.28m

2.63m

10.39m

115 ltrs

1480kg

1307kg

 Pegasus 534

£16,980

O2

4

5.61m

1.96m

7.18m

2.28m

2.63m

10.39m

115 ltrs

1482kg

1309kg

 Pegasus 546

£17,085

K

6

5.61m

1.96m

7.18m

2.28m

2.63m

10.39m

115 ltrs

1497kg

1304kg

 Pegasus 554

£17,085

U2

4

5.61m

1.96m

7.18m

2.28m

2.63m

10.39m

115 ltrs

1492kg

1319g

 Pegasus 624 (Twin Axle)

£18,430

O2

4

6.29m

1.96m

7.87m

2.28m

2.63m

11.13m

115 ltrs

1661kg

1481kg

 Pegasus 646 (Twin Axle)

£18,760

N4

6

6.29m

1.96m

7.87m

2.28m

2.63m

11.13m

115 ltrs

1751kg

1551kg

Layout-A

Layout A

Layout-K

Layout K

Layout-B3 Layout-C

Layout B3

Layout C

Layout-O2

Layout O2

Layout-U2

Layout U2

Layout-N4

Key

 Seats/Beds

 Kitchen

 Table/Cupboard/Wardrobe

 Washroom

 Bunk

 Fixed Bed

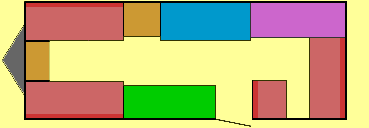

Layout N4

Unicorn

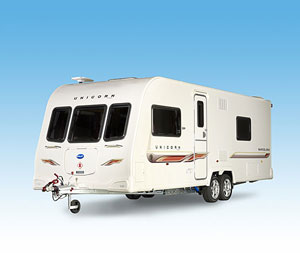

Bailey Unicorn. Combines the revolutionary new Alu-Tech body shell with a totally new level of interior quality and refinement.

Featuring a generous 2.28m interior width, the Unicorn has 1.96m headroom and is elegantly crafted with beautiful Walnut finish interior furniture. There’s a big fridge (190 litres on some models), a built-in microwave oven and a flat-screen tv/dvd player. The lift-up front bed boxes are gas strut assisted for easy access to storage space.

Unicorn models have an intruder alarm, stolen vehicle tracker system & Al-Ko Secure portable wheel lock(s).

MODEL

PRICE
O.T.R.

LAYOUT

BERTHS

INT.
LENGTH

HEAD
ROOM

OVERALL
LENGTH

EXT.
WIDTH

EXT.
HEIGHT

AWNING

FRIDGE

MTPLM

MIRO

 Unicorn Seville

£17,915

A

2

4.90m

1.96m

6.48m

2.28m

2.63m

9.68m

115 ltrs

1433kg

1304kg

 Unicorn Valencia

£18,940

O2

4

5.68m

1.96m

7.25m

2.28m

2.63m

10.46m

115 ltrs

1565kg

1409kg

 Unicorn Madrid

£18,790

B3

4

5.68m

1.96m

7.25m

2.28m

2.63m

10.46m

115 ltrs

1596kg

1440kg

 Unicorn Almeria

£18,990

C

4

5.68m

1.96m

7.25m

2.28m

2.63m

10.46m

190 ltrs

1597kg

1441kg

 Unicorn Barcelona     (Twin Axle)

£20,680

O2

4

6.29m

1.96m

7.87m

2.28m

2.63m

11.13m

190 ltrs

1756kg

1593kg

Layout-A Layout-O2

Layout A

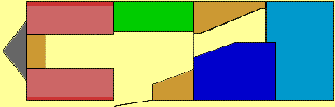

Layout O2

Layout-B3
Layout-C

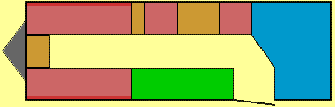

Layout B3

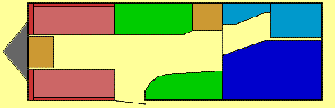

Layout C

 Seats/Beds

 Kitchen

 Table/Cupboard/Wardrobe

 Washroom

 Bunk

 Fixed Bed

Key
