The floorplan drawings below are generic representations of general layout only and are not to scale or correctly proportioned. Dimensions given in the tables have been rounded to two decimal places and prices are subject to change without notice, especially on imported caravans. Therefore, Caravanning Answers accepts no responsibility for incorrect information. For latest prices, specifications and detailed floorplans, click through to the manufacturer’s website.
|
|
|
|
T@B
|
|
|
|
Knaus Tabbert GmbH, Helmut-Knaus-str. 1, 94118 Jandelsbrunn, Germany.
Email: tab@tabme.de Website: www.tabme.de
|
|
|
|
|
|
|
T@b. These teardrop-shaped mini-caravans combine chic retro design with Tardis-like interior. They are light, easy to tow and come in a choice of models, all with thick insulation and six year water ingress guarantee. Being made to order, the interior upholstery and exterior body kit are customisable.
The 320 RS is the baby of the range, yet its double bed is only just short of ‘king size’.
The Offroad is the same length as the 320RS, but has extra-width, more robust edgings,bumper extensions, alloy wheels, back-mounted luggage rods and more.

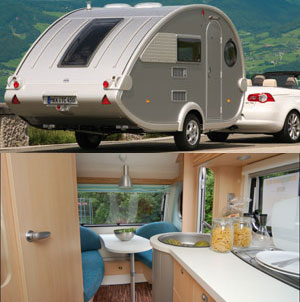

The 400L is longer, wider and higher. It has an onboard washroom/toilet and the fridge is standard equipment.
|
|
|
|
|
|
MODEL
|
PRICE
GUIDE
|
LAYOUT
|
BERTHS
|
INT.
LENGTH
|
HEAD
ROOM
|
OVERALL
LENGTH
|
EXT.
WIDTH
|
EXT.
HEIGHT
|
AWNING
|
FRIDGE
|
MTPLM
|
MIRO
|
|
320RS
|
£8,100
|
D6
|
2
|
3.12m
|
-
|
4.77m
|
1.99m
|
2.28m
|
Special
|
Opt Extra
|
880kg
|
550kg
|
|
OffRoad
|
£9,740
|
D6
|
2
|
3.12m
|
-
|
4.84m
|
2.04m
|
2.40m
|
Special
|
Opt Extra
|
1000kg
|
583kg
|
|
400L
|
£15,260
|
D7
|
3
|
3.94m
|
-
|
5.71m
|
2.23m
|
2.55m
|
Special
|
86 ltrs
|
1200kg
|
1000kg
|
|
|
|
|
 |
|
Layout D6
|
|
|
|
|
 |
|
Layout D7
|
|
|
|
|
Seats/Beds
|
|
Kitchen
|
|
Table/Cupboard/Wardrobe
|
|
Washroom
|
|
Bunk
|
|
Fixed Bed
|
|
|
|
|
Key
|
|
|
|
|
|
|
TEARDROP
|
|
|
|
Little Guy, Branden Farm, Tanners Green, Uckfield, East Sussex TN22 5RE.
Phone: 07980 241115/01825 840059 Website: www.littleguy.co.uk
|
|
|
|
|
|
|

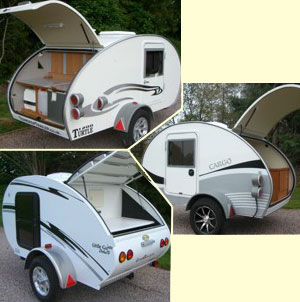

Teardrop. These micro-caravans are little more than beds on wheels so, if you want a daytime sitting area you’ll have to provide it with the clip-on gazebo that comes as an optional extra.
That said, they are well-built, comfortable to sleep in and there’s a cooking area that you access from outside.
There’s space for a small television that you can watch whilst in bed, but no toilet or washing facilities.
The Little Guy 4 and Little Guy 5 are identical except for the width. Like the Cargo, which comes with a removable kitchen unit to facilitate cargo carrying, they are American imports. The Turtle is the Company’s own design, has several refinements and is made in Turkey.
|
|
|
|
|
|
|
MODEL
|
PRICE
O.T.R.
|
LAYOUT
|
BERTHS
|
INT.
LENGTH
|
HEAD
ROOM
|
OVERALL
LENGTH
|
INT.
WIDTH
|
EXT.
HEIGHT
|
AWNING
|
FRIDGE
|
MTPLM
|
MIRO
|
|
Little Guy 4
|
£3,995
|
H6
|
2
|
2.3m
|
1.10m
|
3.40m
|
1.20m
|
1.70m
|
Special
|
n/a
|
n/a
|
300kg
|
|
Little Guy 5
|
£4,295
|
H6
|
2
|
2.3m
|
1.10m
|
3.40m
|
1.53m
|
1.70m
|
Special
|
n/a
|
n/a
|
365kg
|
|
Cargo
|
£3,995
|
H7
|
2
|
2.00m
|
1.10m
|
3.28m
|
1.20m
|
1.73m
|
Special
|
n/a
|
n/a
|
250kg
|
|
Turtle 1200
|
£4,995
|
H6
|
2
|
2.00m
|
1.10m
|
3.94m
|
1.20m
|
1.70m
|
Special
|
n/a
|
n/a
|
400kg
|
|
|
|
|
 |
|
Layout H6
|
|
|
|
|
 |
|
Layout H7
|
|
|
|
|
|
Seats/Beds
|
|
Kitchen
|
|
Table/Cupboard/Wardrobe
|
|
Key
|
|
|
|
Washroom
|
|
Bunk
|
|
Fixed Bed
|
|
|
|
|
|
|
TRIGANO
|
|
|
|
|
|
|
|

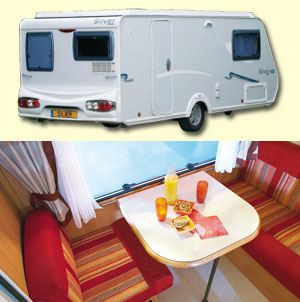

Trigano Silver. Elevating roof caravans like these are an option that gives generous interior headroom combined with a low profile whilst being towed and in storage. This makes for marginally easier and more economical towing and, more to the point, enables the caravan to be stored under a low car port, etc.
The Silver range is well-made, light in weight, has a good specification level and is reasonably-priced. Layouts include an ‘end double bed’ configuration and an interesting ‘corner seating’ arrangement.
Silver Range caravans are available with between two and four berths and are a popular choice with couples. With widths of only 1.8m and 2m, they are not the most roomy caravans. Compare them with the Eriba range.
|
|
|
|
|
|
MODEL
|
PRICE
O.T.R.
|
LAYOUT
|
BERTHS
|
INT.
LENGTH
|
HEAD
ROOM
|
OVERALL
LENGTH
|
EXT.
WIDTH
|
EXT.
HEIGHT
|
AWNING
|
FRIDGE
|
MTPLM
|
MIRO
|
|
Silver 310TDE
|
£13,495
|
tbc
|
2
|
3.40m
|
1.95m
|
4.85m
|
1.80m
|
1.98m
|
9.11m
|
70 ltrs
|
950kg
|
700kg
|
|
Silver 310TDL
|
£13,595
|
R6
|
2
|
3.40m
|
1.95m
|
4.85m
|
1.80m
|
1.98m
|
9.87m
|
70 ltrs
|
950kg
|
700kg
|
|
Silver 340TDE
|
£14,215
|
E5
|
3
|
3.50m
|
1.95m
|
4.95m
|
2.00m
|
1.98m
|
9.87m
|
70 ltrs
|
1000kg
|
820kg
|
|
Silver 380TDL
|
£14,449
|
R6
|
2
|
3.80m
|
1.95m
|
5.25m
|
2.00m
|
1.98m
|
10.20m
|
70 ltrs
|
1100kg
|
820kg
|
|
Silver 420CP
|
£14,985
|
R7
|
4
|
4.40m
|
1.95m
|
5.85m
|
2.00m
|
1.98m
|
10.20m
|
70 ltrs
|
1200kg
|
880kg
|
|
Silver 430LJ
|
£15,469
|
F6
|
3
|
4.40m
|
1.95m
|
5.85m
|
2.00m
|
1.98m
|
10.20m
|
70 ltrs
|
1200kg
|
890kg
|
|
|
|
|
|
|
|
Layout R7
|
|
|
|
Seats/Beds
|
|
Kitchen
|
|
Table/Cupboard/Wardrobe
|
|
Washroom
|
|
Bunk
|
|
Fixed Bed
|
|
|
|
|
Key
|
|
|
|
|
|
|
VANMASTER
|
|
|
|
Vanmaster Limited, Unit 5 Martland Park, Wigan, Lancashire WN5 0LE.
Phone: 01942 212 194 Website: www.vanmaster.net
|
|
|
|
|
|
|
Vanmaster. These high-quality, hand-built caravans are truly luxurious, with real ash wood interiors and the highest standards of insulation. 2010 sees the introduction of a ‘Lifetime’ water ingress warranty.

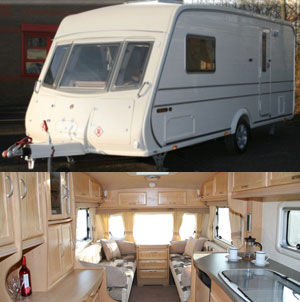

The Accolade range of two-berth, single-axle caravans is available in three lengths. There are models with side or end kitchen and one model with a very spacious full width end washroom. The end panels and roof are in easy-repair GRP.
Standard features include a pressurised water system with onboard tank, Al-Ko AKS 3004 stabiliser, alloy wheels, an exterior gas barbecue point, 24 hour programmable central heating, hob and sink covers and 115 litre fridge (upgradeable to 150 litre fridge freezer).
|
|
|
|
|
|
|
MODEL
|
PRICE
O.T.R.
|
LAYOUT
|
BERTHS
|
INT.
LENGTH
|
HEAD
ROOM
|
OVERALL
LENGTH
|
EXT.
WIDTH
|
EXT.
HEIGHT
|
AWNING
|
FRIDGE
|
MTPLM
|
MIRO
|
|
Accolade 440
|
£21,500
|
C6
|
2
|
4.39m
|
1.98m
|
6.14m
|
2.30m
|
2.57m
|
8.70m
|
115 ltrs
|
1650kg
|
1380kg
|
|
Accolade 480
|
£24,500
|
C7
|
2
|
4.85m
|
1.98m
|
6.59m
|
2.30m
|
2.57m
|
9.16m
|
115 ltrs
|
1700kg
|
1420kg
|
|

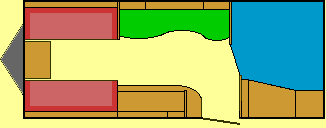

Accolade 520
|
£27,500
|
C8
|
2
|
5.19m
|
1.98m
|
6.93m
|
2.30m
|
2.57m
|
9.50m
|
115 ltrs
|
1760kg
|
1460kg
|
|
|
|
|

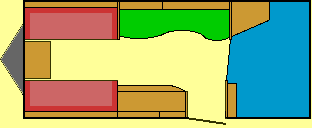

Layout C7
|
|
Kitchen
|
|
|
|
Table/Cupboard/Wardrobe
|
|
|
|
Key
|
|
|
|
|
|
|
|
|

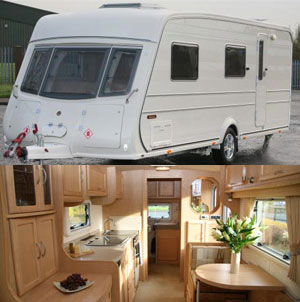

Vanmaster Applause. An expansive kitchen area and spacious, opulent washroom are hallmarks of this range, which can be built as single or twin axle caravans.
Six identical-sized 4-berth models are available, giving a choice of layouts including side or island fixed double bed, fixed twin beds, side or end washroom, and more.
GRP end and roof panels facilitate easy repair in the event of damage. There’s an Al-Ko AKS 3004 stabiliser, alloy wheels, spare wheel carrier with spare wheel, heavy-duty corner steadies, offside and nearside awning lights, and an external gas barbecue point.
Inside, there’s 24 hour programmable central heating, a ceramic toilet, remote control DAB radio and more.
|
|
|
|
|
|
MODEL
|
PRICE
O.T.R.
|
LAYOUT
|
BERTHS
|
INT.
LENGTH
|
HEAD
ROOM
|
OVERALL
LENGTH
|
EXT.
WIDTH
|
EXT.
HEIGHT
|
AWNING
|
FRIDGE
|
MTPLM
|
MIRO
|
|

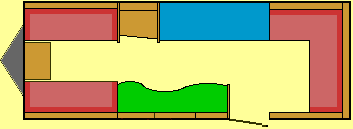

Applause DD
|
£28,950
|
W4
|
4
|
5.88m
|
1.98m
|
7.57m
|
2.30m
|
2.57m
|
10.10m
|
115 ltrs
|
1800kg
|
1500kg
|
|

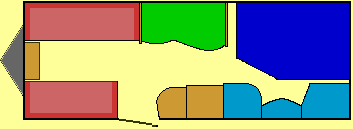

Applause FSB
|
£28,950
|
W3
|
4
|
5.88m
|
1.98m
|
7.57m
|
2.30m
|
2.57m
|
10.10m
|
115 ltrs
|
1800kg
|
1500kg
|
|

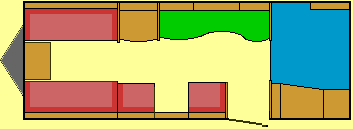

Applause SD
|
£28,500
|
W2
|
4
|
5.88m
|
1.98m
|
7.57m
|
2.30m
|
2.57m
|
10.10m
|
115 ltrs
|
1800kg
|
1500kg
|
|
Applause FSB/EW
|
£28,950
|
?
|
4
|
5.88m
|
1.98m
|
7.57m
|
2.30m
|
2.57m
|
10.10m
|
115 ltrs
|
1800kg
|
1500kg
|
|

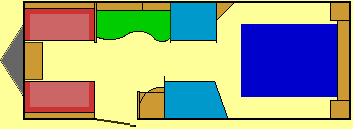

Applause IB
|
£28,950
|
W5
|
4
|
5.88m
|
1.98m
|
7.57m
|
2.30m
|
2.57m
|
10.10m
|
115 ltrs
|
1800kg
|
1500kg
|
|

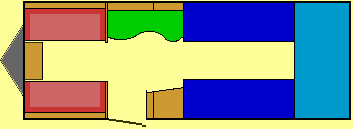

Applause FTB/EW
|
£28,950
|
W6
|
4
|
5.88m
|
1.98m
|
7.57m
|
2.30m
|
2.57m
|
10.10m
|
115 ltrs
|
1800kg
|
1500kg
|
|
|
|
|
|
|
|
|
|
|
|
|
Seats/Beds
|
|
Kitchen
|
|
Table/Cupboard/
Wardrobe
|
|
Fixed Bed
|
|
|
Bunk
|
|
|
Washroom
|
|
|
Key
|
|
|
|
|
|
|
|

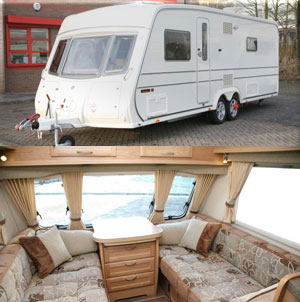

Vanmaster Occasion. This twin axle range provides the ultimate in space and luxury.
The five identical-size four-berth layouts include models with side or island fixed double bed (including an interesting transverse option), fixed twin beds, side or full-width end washroom, etc.
Outside, there’s a gas barbecue point, Al-Ko AKS 3004 stabiliser, easy-repair GRP end and roof panels, heavy duty corner steadies, alloy wheels and more.
Inside, there’s a pressurised water system with onboard tank, 24 hour programmable central heating, 115 litre fridge (upgraeable to 150 litre fridge freezer), ceramic toilet, remote control DAB radio and much more.
|
|
|
|
|
|
MODEL
|
PRICE
O.T.R.
|
LAYOUT
|
BERTHS
|
INT.
LENGTH
|
HEAD
ROOM
|
OVERALL
LENGTH
|
EXT.
WIDTH
|
EXT.
HEIGHT
|
AWNING
|
FRIDGE
|
MTPLM
|
MIRO
|
|
Occasion FSB (twin axle)
|
£31,000
|
Y4
|
4
|
6.44m
|
1.98m
|
7.94m
|
2.30m
|
2.57m
|
10.50m
|
115 ltrs
|
1980kg
|
1680kg
|
|
Occasion DD (twin axle)
|
£31,000
|
Y5
|
4
|
6.44m
|
1.98m
|
7.94m
|
2.30m
|
2.57m
|
10.50m
|
115 ltrs
|
1960kg
|
1660kg
|
|
Occasion IB (twin axle)
|
£31,500
|
W5
|
4
|
6.44m
|
1.98m
|
7.94m
|
2.30m
|
2.57m
|
10.50m
|
115 ltrs
|
1960kg
|
1660kg
|
|
Occasion SB (twin axle)
|
£31,000
|
Y6
|
4
|
6.44m
|
1.98m
|
7.94m
|
2.30m
|
2.57m
|
10.50m
|
115 ltrs
|
1960kg
|
1660kg
|
|

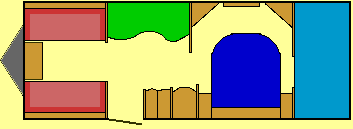

Occasion TBEW (twin axle)
|
£31,950
|
Y7
|
4
|
6.44m
|
1.98m
|
7.94m
|
2.30m
|
2.57m
|
10.50m
|
115 ltr
|
1980kg
|
1680kg
|
|
|
|
|
|
|
 |
|

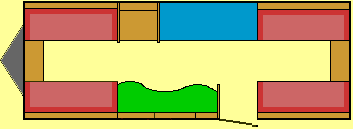

Layout Y5
|
|

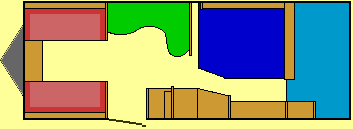

Layout Y6
|
|
Kitchen
|
|
|
|
Table/Cupboard/Wardrobe
|
|
|
|
Key
|
|
|
|
|
|
|
|
|
